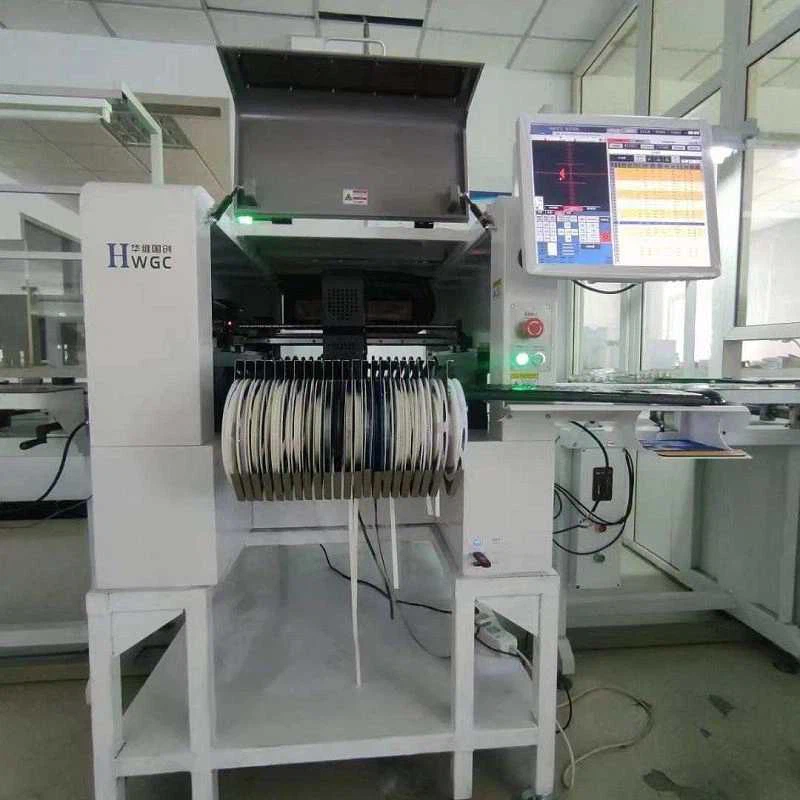

HWM-J100 Conveyor
Product Introduction Pick and Place DSQ800-120F Nrog 11 Lub Koob Yees Duab 120 Feeders Servo Tsav + Ncaj Qhia Rail SMD Soldering Tshuab Mini Pick Thiab qhov chaw tshuab Beijing HuaweiGuochuang Electronic Technology Co. Ltd. tshawb nrhiav thiab...
Khoom Taw qhia
Khoom Taw Qhia
Pick and Place DSQ800-120F Nrog 11 Lub Koob Yees Duab 120 Feeders Servo Tsav + Ncaj Ncej Qhia Rail SMD Soldering Tshuab Mini Pick Thiab qhov chaw tshuab
Beijing HuaweiGuochuang Electronic Technology Co. Ltd. yog ib lub tuam txhab suav high-tech nrog kev tshawb fawb thiab kev tsim kho (R&D), cov khoom lag luam thiab kev muag khoom. Kev xaiv thiab tso machi-ne, SMT cov cuab yeej tseem ceeb, yog peb cov khoom siv tshawb fawb thiab kev tsim kho tseem ceeb.
Peb lub zeem muag yog los ua ib qho kev lag luam uas ma-kes nqi-zoo hauv tsev tuaj tos thiab tso lub tshuab ntawm peb tus kheej thiab peb npaj siab yuav rhuav tshem qhov xwm txheej tam sim no ntawm kev lag luam thoob ntiaj teb.
Peb tau tuav lub tswv yim ntawm kev ua pa-triotic, pragmatic, kev tsim kho tshiab thiab ua haujlwm rau lub zej zog. Cov khoom ntawm kev tuaj tos thiab tso tshuab ntawm kev muag khoom tsis yog tsuas yog txaus siab los ntawm cov tuam txhab me thiab nruab nrab hauv tsev, tab sis kuj tau txais txiaj ntsig zoo heev los ntawm cov neeg siv khoom txawv teb chaws.
Kuj thiab capacitance saum toj no 0201, 0.3mm pins nti.
Siv hluav taws xob feeder kom tau raws li qhov yuav tsum tau ua ntawm 0201 cov khoom.
Lub koob yees duab siab txhais nrog lub zeem muag meej tuaj yeem ua tau raws li cov txheej txheem mounting ntawm QPF, BGA, QFP, thiab lwm yam.
PCB nrog thickness tsawg dua 3 hli, 340 * 560mm.
Txhawb PCB nrog tuab ntawm 1 hli -3 hli.
Txhawb qhov dav tsawg kawg nkaus ntawm 50 hli, qhov siab tshaj plaws ntawm 560 hli PCB, ntev ntawm 340 hli PCB.
Khoom Description
|
Specification |
|
|
Number of Placement Heads |
8 (siab precision) |
|
Tus naj npawb ntawm iC tais |
96 |
|
Tus naj npawb ntawm Feeders |
120 (xws li 8mm feeder) |
|
Positioning raug |
0.01 hli |
|
Rov qab Mounting raug |
0.02 hli |
|
Ntau yam ntawm Mounting Ceev |
20000-26000Pcs/h |
|
Siv tau Cov Cheebtsam |
resistor.capacitor.chip.lamp hlaws thiab lwm yam. |
|
Txhawb Qhov Siab Tshaj Plaws ntawm PCB |
340 * 560 hli |
|
Feeders |
NXT fais feeder, vibrating feeder, IC tais thiab lwm yam |
|
Cov cuab yeej paub |
cim lub koob yees duab x2, ceev paub lub koob yees duab x8. high-precision lub koob yees duab x1 |
|
Qhov siab tshaj plaws ntawm cov khoom siv |
Tsawg dua los yog sib npaug li 20mm |
|
Kev lees paub |
simultaneous paub thiab xaiv nrog yim lub taub hau |
|
PCB Convey Hom |
Peb-theem nkag tsis siv neeg txuas los ntawm sab laug mus rau sab xis, tsis siv neeg PCB qhov chaw |
|
Mark Positioning |
manual/automatic |
|
Txoj kev Programming |
tsis siv neeg programming tom qab manually importing cov ntaub ntawv ntawm PCB coordinates |
|
Tswj System |
HuaweiGuochuang 2021 tswj qhov system |
|
Cov kauj ruam siab kawg ntawm XY Axis |
423mm * 734mm (sab laug) 423mm * 734mm (txoj cai) |
